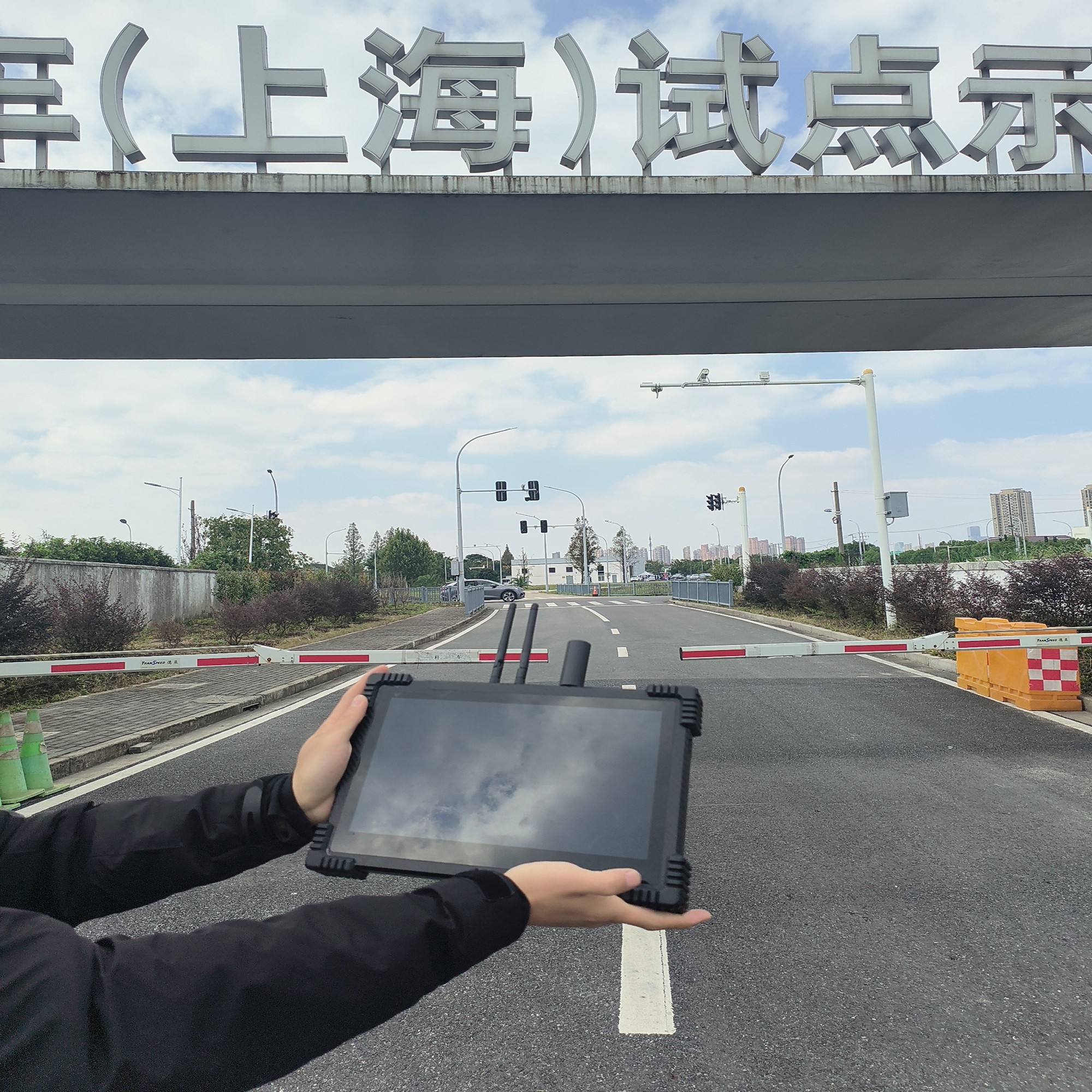

V2X Message Analyzer

Pain Points

Feature

Convenient terminal,free from the dependence of traditional testing on personnel and equipment,ready to test and leave

Resolve the issues of difficulty in collecting V2X message data,difficulty in identifying anomalies and poor readability

Supporting the capture of air-interface messages across modules,terminals,manufacturers and regions

Supporting visual V2X messages and automatically verifying the standardization of message filling

Supporting environmental data recording&playback,one-key evaluation and instant report generation

Support high-precision centimeter-level positioning

Equipped with a high-computing-power processor,capable of parsing large-scale data without pressure

Large-capacity lithium battery,supporting 7 hour test endurance

10.1'high-definition touch screen,anti backlight/finger mark,smooth multi-finger operation

Reliable and simple structure,ultra light body,no burden for long-term handheld operation

Specification

Physical Characteristic
Material	PC+Carbon fibre
Colour	Black
Weight	1.5kg
Hardware Specifications
LTE-V2X	Frequency:5.905～5.925GHz; Transmission power ≤ 23dBm;Supports 20MHz bandwidth/dual 10MHz bandwidth;Peak speed of 31.7Mbps, receiving sensitivity of -95dB; Communication distance≥800m
LTE	Adopting LTE 3GPP Rel.11 technology; Transmission power 23dBm ± 2.7dB; supports maximum downlink speed of 150Mbps and maximum uplink speed of 50Mbps; a phone fit all kinds of networks
GNSS	Support GPS/Beidou/Glonass/Galileo multi-mode positioning; Supports L1/L2 dual band reception; Support inertial navigation;Support RTK and provide centimeter level high-precision positioning; The maximum data update rate is 30Hz
LED Light	1 indicator light, supporting power connection and charging display
Interface	Functional interface: 1 RJ45 network communication interface (LAN # 1100Mbps); 1 USB 3.0 interface; Antenna interface: GPS/BD * 1, LTE-V * 2
Screen	11.6-inch touch screen
Battery	Capacity 10000mAh, continuous discharge time not less than 7H
Electrical Characteristics
Power Supply Voltage	DC 15V
Power Dissipation	≤36W
Environmental Characteristics
Temperature	-20C-60℃
Protection Grade	IP53
