V-KEY V2X Stack

Features of V-Key Protocol Stack

The Key to Connect Vehicles with Everything Bringing a Leap in Travel Experience

01

For mass production

It has been pre-installed on multiple domestic OEM production platforms and is the first pre-installed mass production project in China
02

Rapid iteration

Deeply involved in standard formulation,synchronously update the protocol stack software,and pass the protocol consistency test certification of CTTL
03

Strong compatibility

It has wide compatibility,is suitable for in-vehicle/roadside/hardware-in-the-loop test systems,and is fully compatible with mainstream C-V2X communication modules
04

Rich interfaces

It has rich internal/external interfaces,including CAN with the vehicle,on-board Ethernet bus,roadside perception system,cloud platform,etc.,meeting the requirements of vehicle-road-cloud integration construction,and can be further developed according to business needs
05

Rich supporting facilities

Providing advanced core services such as communication management platform,data management platform,application algorithm platform,etc.,and offering a series of supporting software and hardware tools

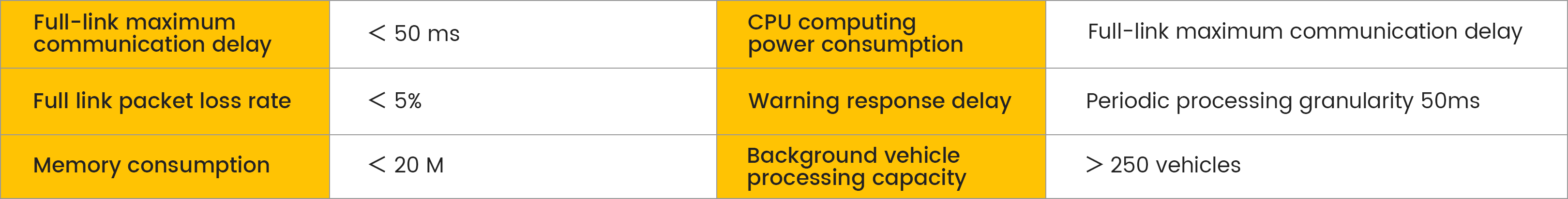

Parameter

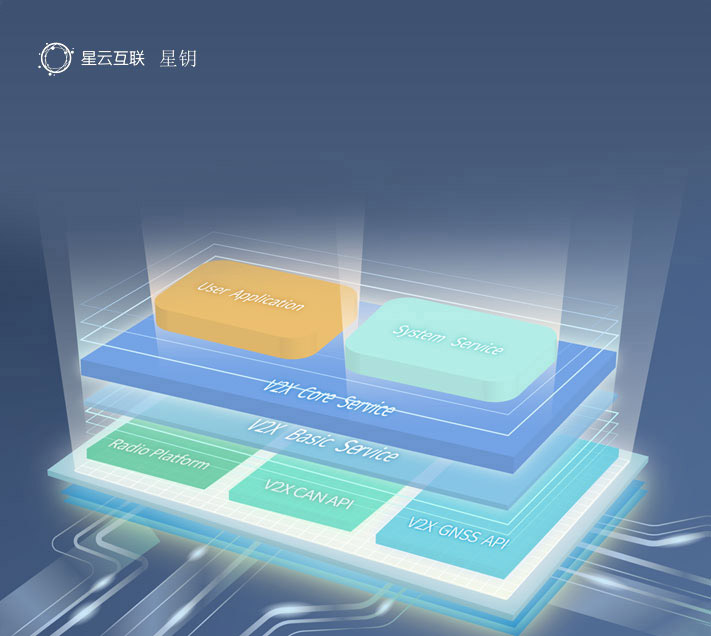

Configuration Solution

Configuration Plan 1

Only provide the functional parts specified in the V2X national standard,suitable for users who are familiar with V2X business logic and hope for high customization or vertical industry users
Configuration Plan 2

On the basis of Configuration Plan 1,V2X core services have been added to encapsulate common V2X message operations and data structures,and manage module configuration files
Configuration Plan 3

On the basis of configuration plan two,V2X system services have been added,which can directly obtain structured data of V2X business through inter process communication mechanism for their own application development
